PLC Control Color Steel Tile Roll Forming Machin Hydraulic Cutting Long Service
1. Description of glazed tile roll forming machine:
Color steel tile is made by using the color steel plate after the rolling, become the steel plates with various kinds of wave shapes.
It is suit for the industrial and civilian constructions, warehouses, the big cross-beam structure houses’ roof, metope and the inner/outer metope’s decoration.
It has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used.
2. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
3. Main components of roof panel roll forming machine
| Manual Decoiler | 1 Set |
| Feeding guiding device | 1 Set |
| Leveling System | 1 Set |
| Roll Forming System | 1 Set |
| Hydraulic Cutting System | 1 Set |
| PLC control box | 1 Set |
| Hydraulic Unit | 1 Set |
| Receiving Tables | 1 Set |
4. Technical details of glazed tilel roll forming machine:
| Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| Thickness of coil sheet | 0.18-0.6mm |
| Coil width | 914mm |
| Effective width | 800mm |
| Material of main frame | 400H steel |
| Diameter of Soild shaft | 70mm, high grade 45# steel |
| Roller | High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm |
| Thickness of middle plate | 16mm, 45# steel plate |
| Forming station | 11rows |
| Drive type | gear box |
| Power of main motor | 7.5 kw, servo motor |
| Sidewall connection bar | 25mm, zinc plated |
| Forming speed | About 8m/min |
| Hydraulic pump station | 15 kw, 40# hydraulic oil |
| PLC | DELTA(TAIWAN)/Mitsubishi |
| Material of razor blades | Cr 12, quenching 58-62℃ |
| Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| Switch | CHNT |
| Frequency changer | DELTA(TAIWAN)/Mitsubishi |
5. Advantages
We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
we have 5 professional designers to design molding solutions
about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
We have 5 warehouse ,we have storage area for raw material ,we can make sure stock is always enough, we can ensure the delivery time.
Our factory has more than 20000 squre meters
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

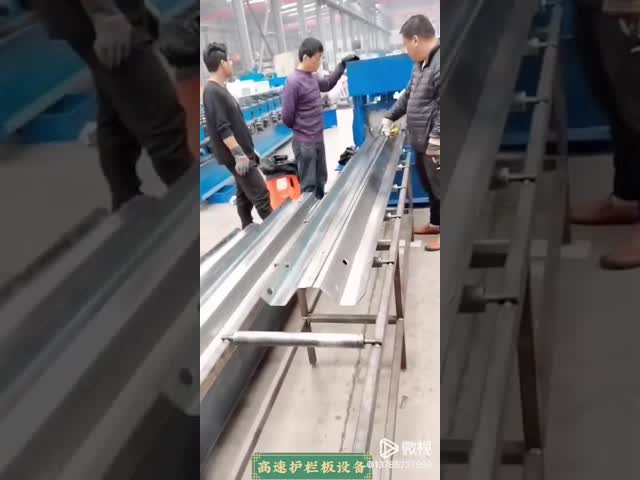

7. Product photo
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
Q:How long can the machine be finished?
A:The machine takes about 30-40 days to complete, if you are in a hurry to use the machine , we can make it urgently, because we have enough raw material.
Q:Do you have a designer to design my profile drawing?
A:yes, or designers adopt European concepts, have 10 years of design experience, and are praised by our customers.
